Description

Automatic window control systems can be used with windows that are already installed in the roof. Depending on the power supply option, the following solutions are available:
electric automatic window control – where electrical power is available,
Ventic Solar – with solar energy as the power supply, where electrical power is unavailable.

Elecric control:

Modèle
Specification

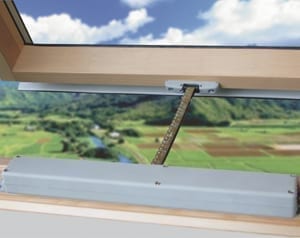

ASE24 electric chain actuator Output voltage 24V.
Extension control of 24 and 36 cm.
Absorbed current 0.43 A
No load speed 7.5 mm/s
IP protection degree: IP30.
Double chain made of steel.
Dimensions: 362x48x34 mm.
Siłownik elektryczny do okna dachowego
ASE230 electric chain actuator Output voltage 230V.
Extension control of 24 and 36 cm.
Absorbed current 0.12 A.
No load speed 8 mm/s
IP protection degree: IP30.
Double chain made of steel.
Dimensions: 362x48x34 mm.
Siłownik elektryczny do okna dachowego
ACS24 control centre Output voltage 24V.
Max. power consumption of 62W.
Absorbed current 1.35 A.
4 control outputs for actuators.
16 actuators connection.
Connection of the ADD rain detector.
Connection of the ADW wind detector.
Manual control (AWN switch) or remote control (AP4 remote).
Dimensions: 160x120x75 mm.
Centrala sterująca siłownikiem
ACS230 control centre Output voltage 230V.
Max. power consumption of 300W.
Absorbed current 1.30 A.
4 control outputs for actuators.
16 actuators connection.
Connection of the ADD rain detector.
Connection of the ADW wind detector.
Manual control (AWN switch) or remote control (AP4 remote).
Dimensions: 160x120x75 mm.
Centrala sterująca siłownikiem
ACS230 control centre Output voltage 230V.
Max. power consumption of 2W.
Absorbed current 1.30 A.
1 control output for actuator.
1 actuator connection.
Connection of the ADD rain detector.
Remote control (AP4 remote).
Dimensions: 87x53x32 mm.
ACR 230
Wind detector ADW Triggers automatic closing of the window when wind force exceeds defined values.
With a set of blades that rotate depending on the wind speed
Waterproof housing
czujniki ADW i ADD
Rain detector ADD Triggers automatic closing of the window when the sensor detects rain.
The sensor will not react to fog, ice, dew or moisture
czujniki ADW i ADD
Wall switch AWN Włącznik naścienny do sterowania oknem dachowym
Remote AP4 Remote control (AP4). pilot do sterowania oknem dachowym

Ventic Solar:

Model
Specification
Wireless Ventic Solar ASS chain drive Automatic window control. The drive comes with an integrated solar panel. Practical remote control. Easy wireless assembly. Possibility of connecting to existing systems. Ventic-Solar z pilotem
Wireless ASD rain detector Triggers automatic window closing when the sensor is wet. czujnik deszczu solar

Ordering windows accessories:
1. Select the product.
2. Read the number on the rating plate.
3. Fill in the form.
4. If necessary, we will contact you for further details.

In case of any doubts, please contact our advisor or send a message at: export@okpol.com.
